Android Payment Terminal

• 1

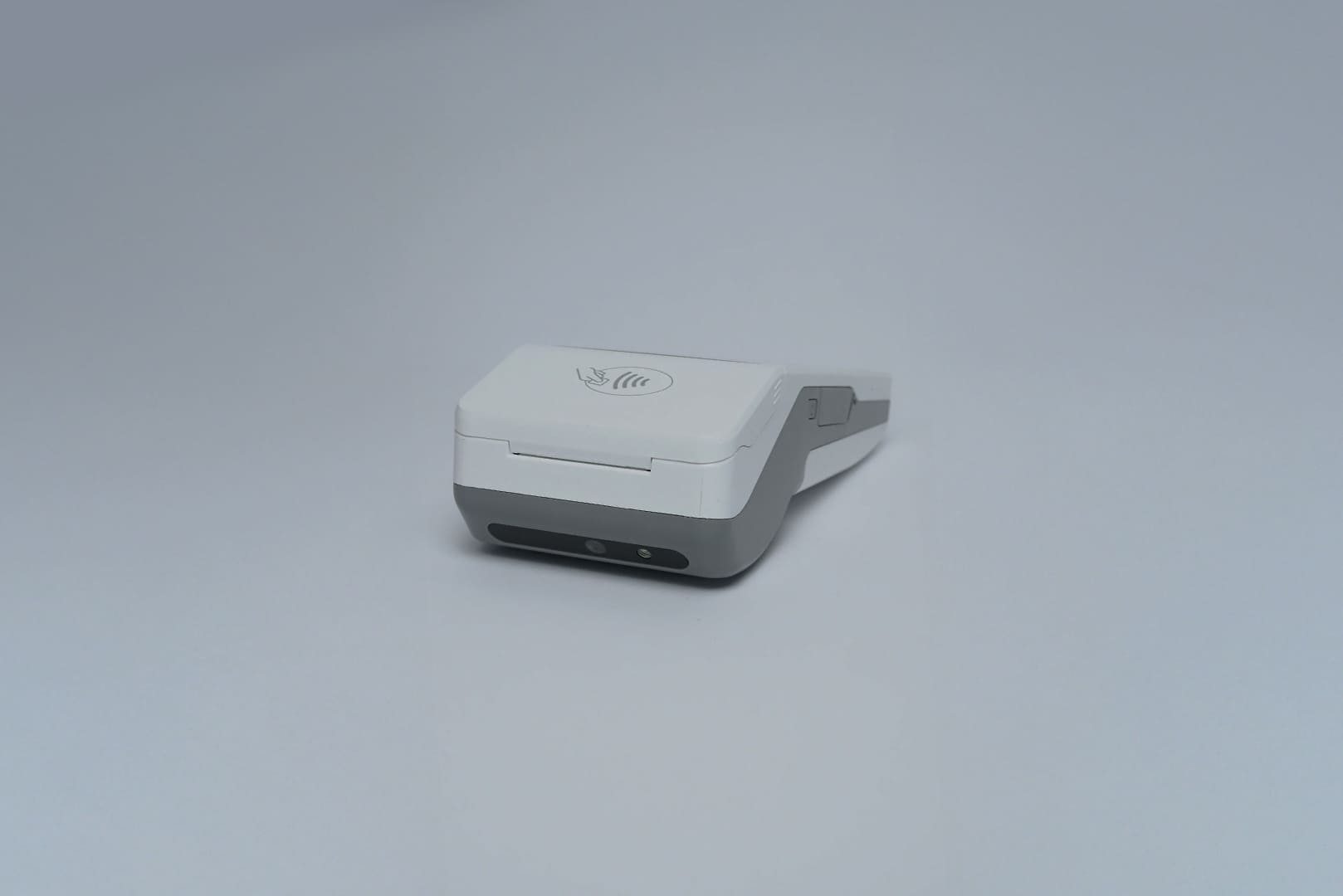

  Saturn1000F2 Payment terminal

  Processor: ARM A53 Quad-Core 1.3GHz Processor + M3 Secure Processor

  Memory: Flash/RAM 8GB/2GB | Micro-SD

  Operating System: Android 10

  Display: 5.5” Color TFT with Capacitive Touch Screen

  Card Reader: Magnetic Stripe, Smart Card, Contactless, SIM, SAM

  Communication Interface Options: Wire, Wireless

  Audio: Speaker | Headphone Jack | Microphone

  Keypad: Virtual Keypad / PIN on Glass

  Camera: 5MP Auto Focus Rear Camera | 2MP Fixed Focus Front Camera (optional)

  Printer: Paper Roll Size: 57mm (W) x Ø40mm | Print Speed: 100mm/sec

  Software: SDK | KMS | TMS | GDB | CTOS library | ISO 8583 library | Crypto library

  Crypto: TRNG | DES | T’DES | AES | RSA | MK/SK | DUKPT

  Power Supply: DC 5V/2A | Battery 6000mAh/3.7V Li-ion

  Dimensions (L x W x H): 203.9 x 80 x 56.7 (mm)

  Weight: 492 g

  Operating Temperature: 0°C to 50°C

  Storage Temperature: -20°C to 70°C

  Operating Humidity: 5% to 90% non-condensing

  Storage Humidity: 5% to 90% non-condensing

  Certification: PCI PTS 6.x | EMV L1/L2 | payWave | PayPass | ExpressPay | D-PAS | Interac Flash | J/Speedy | FeliCa | QuickPass | TQM

  Optional Accessories: Charging Cradle, Barcode Reader, USB Cable, 5V/2A Power Adapter, Communication Cradle

• The Saturn1000F2 is Seitatech’s portable Android-powered payment terminal, built for
  versatility on the go. Equipped with a powerful battery, it ensures uninterrupted
  operation in mobile environments. With the Seitatech Partner API, the S1F2 easily
  integrates third-party applications to support various business scenarios. The
  terminal also features a modern cloud interface, providing fast, flexible POS
  integration for secure, real-time transactions. Ideal for dynamic, mobile operations,
  the S1F2 combines convenience, reliability, and high performance to deliver
  seamless payment experiences everywhere.
