Android Payment Terminal

• 1

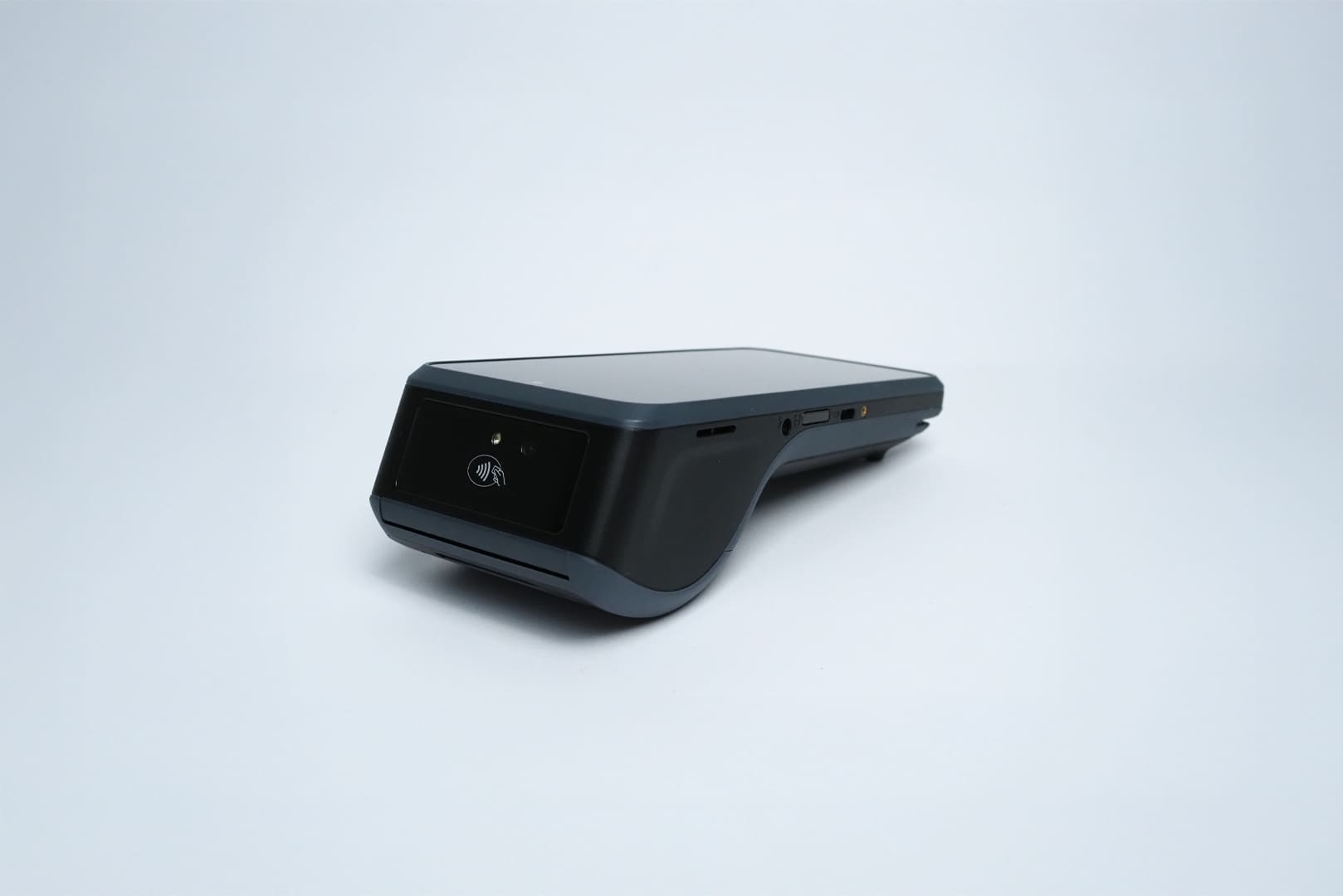

  Saturn1000F4-PRO Payment terminal

  Processor: ARM A53 Octa-Core 2.4GHz + Secure Processor

  Memory: Flash: 32GB | RAM: 4GB/8GB(option) | Micro-SD Socket

  Operating System: Android 13

  Display: 6.7” Color HD+ Display with Capacitive Touch Screen

  Card Reader: Magnetic Stripe, Smart Card, Contactless

  Communication Ports: USB-C

  Wireless: 4G LTE, 3G, 2G, Wi-Fi, Bluetooth

  Positioning: GPS, GLONASS, BEIDOU, GALILEO

  Audio: Speaker | Audio Jack | Microphone

  SIM & SAM: 2 SIM | 1 SIM + eSIM (option) | 2 SAM

  Keypad: Onscreen Virtual Keypad

  Camera: Front: 2MP(option) FF | Rear: 5MP/13MP(option) AF | Barcode Scanner (option)

  Printer: Paper Roll Size: 58mm (W) x Ø40mm | Print Speed: 100mm/sec

  Power Supply: DC 5V/2A or 9V/2A(option) | Battery 3350mAh 7.4V Li-ion, 24.12Wh

  Dimensions (L x W x H): 192 x 81 x 54 mm

  Weight: 436g

  Operating Temperature: -10°C to 55°

  Storage Temperature: -20°C to 70°C

  Operating Humidity: 5% to 90% Non-condensing

  Storage Humidity: 5% to 90% Non-condensing

  Certification: PCI PTS 6.x | EMV L1/L2 | payWave | PayPass | ExpressPay | D-PAS | Interac Flash | J/Speedy | FeliCa | QuickPass | TQM

  CasHUB Support: Yes

  Optional Accessories: Charging Cradle, Communication Cradle, Mini charger, Protective casing

• The S1F4 Pro is Castles Technology’s robust, all-in-one Android-powered
  payment solution, designed for comprehensive business needs.
  With its high-performance octa-core processor and integrated printer,
  it streamlines operations and enhances customer interactions.

  Leveraging the Seitatech. Partner API, the S1F4 Pro seamlessly incorporates
  diverse applications, catering to a wide array of business requirements.
  Its large, user-friendly touchscreen and versatile connectivity options,
  including 4G LTE, Wi-Fi, and Bluetooth, ensure reliable and efficient transactions.

  The S1F4 Pro delivers powerful, integrated functionality, making it the perfect choice
  for businesses demanding advanced, reliable payment and operational capabilities.
